RX TX 1 COIL 1 LAYER 24UH 5.7A

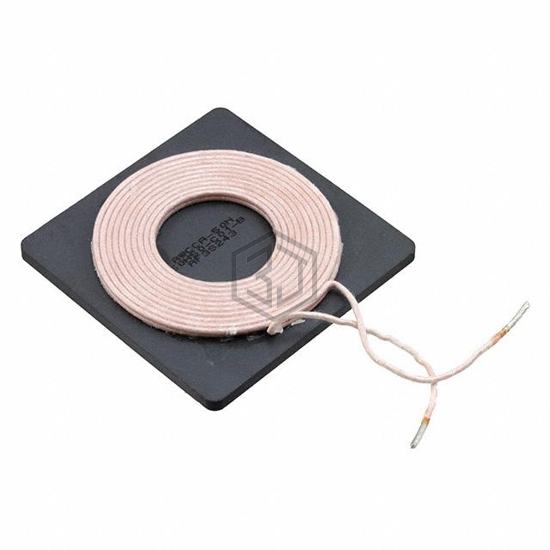

AWCCA-50N50H50-C01-B is a Wireless Charging Coils manufactured by Abracon LLC. RX TX 1 COIL 1 LAYER 24UH 5.7A. Key specifications: operating temperature -25°C ~ 85°C, current rating (amps) 5.7A, size / dimension 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm), tolerance ±10%.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Function | Receiver, Transmitter |
| Type | 1 Coil, 1 Layer |
| Inductance | 24µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 72mOhm |
| Q @ Freq | 163 @ 100kHz |
| Current Rating (Amps) | 5.7A |
| Current - Saturation (Isat) | 30A |
| Frequency - Self Resonant | 2.8MHz |
| Operating Temperature | -25°C ~ 85°C |
| Size / Dimension | 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm) |
Submit your RFQ for AWCCA-50N50H50-C01-B and get a quote within 24 hours.
