TX 3 COIL 1 LAYER 11.5UH 12UH

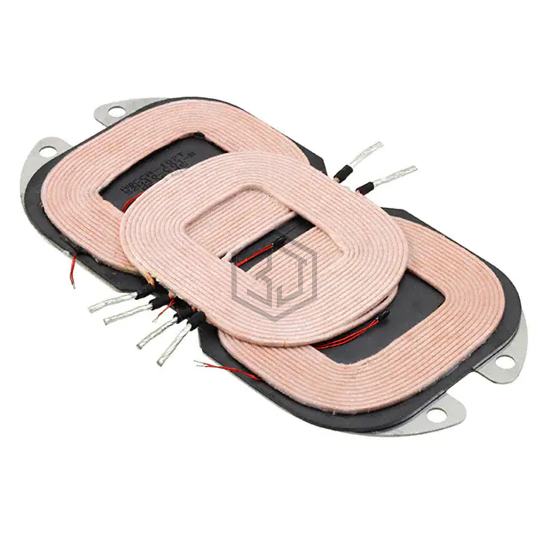

AWCCA-107T52H40-C01-B is a Wireless Charging Coils manufactured by Abracon LLC. TX 3 COIL 1 LAYER 11.5UH 12UH. Key specifications: operating temperature -25°C ~ 85°C, current rating (amps) 7.5A, size / dimension 4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm), tolerance ±10%.
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Transmitter |
| Type | 3 Coil, 1 Layer |
| Inductance | 11.5µH, 12µH |
| Tolerance | ±10% |
| DC Resistance (DCR) | 56mOhm |
| Q @ Freq | 80 @ 100kHz |
| Current Rating (Amps) | 7.5A |
| Current - Saturation (Isat) | 18A |
| Frequency - Self Resonant | 7MHz |
| Operating Temperature | -25°C ~ 85°C |
| Size / Dimension | 4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm) |
Submit your RFQ for AWCCA-107T52H40-C01-B and get a quote within 24 hours.
