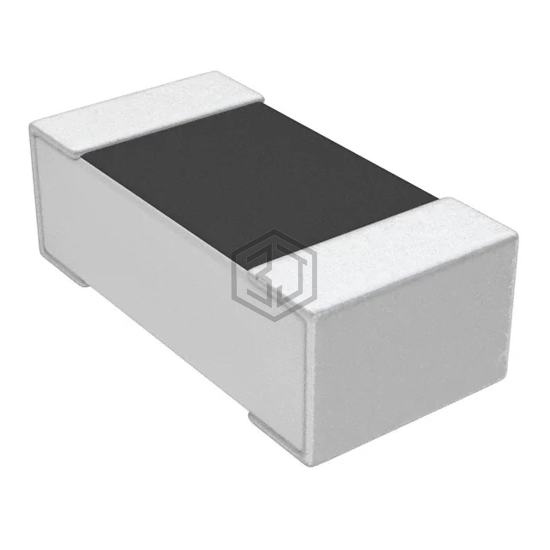

FIXED IND 2.1NH 200MA 700MOHM SM
ATFC-0201-2N1B-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 2.1NH 200MA 700MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, package / case 0201 (0603 Metric), current rating (amps) 200 mA.
In Stock: 28,997
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Thin Film |
| Material - Core | Ceramic |
| Inductance | 2.1 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | 8 @ 500MHz |
| Frequency - Self Resonant | 8GHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.011" (0.28mm) |
Submit your RFQ for ATFC-0201-2N1B-T and get a quote within 24 hours.
