FIXED IND 6.5UH 8.6A 22.3MOHM SM

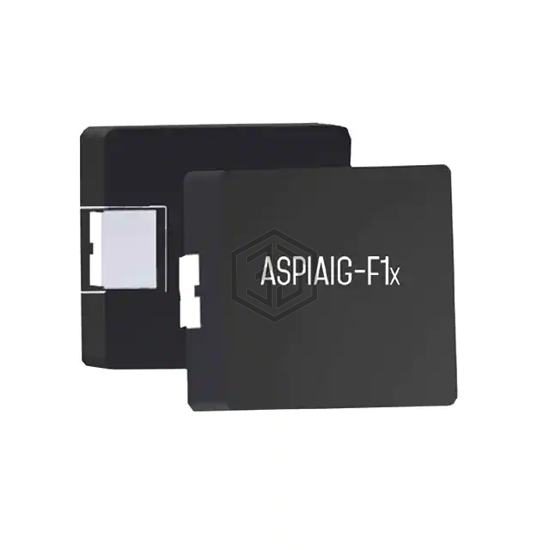

ASPIAIG-F1040-6R5M-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 6.5UH 8.6A 22.3MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 8.6 A.
In Stock: 410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 6.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.6 A |
| Current - Saturation (Isat) | 13.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 22.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1040 |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
