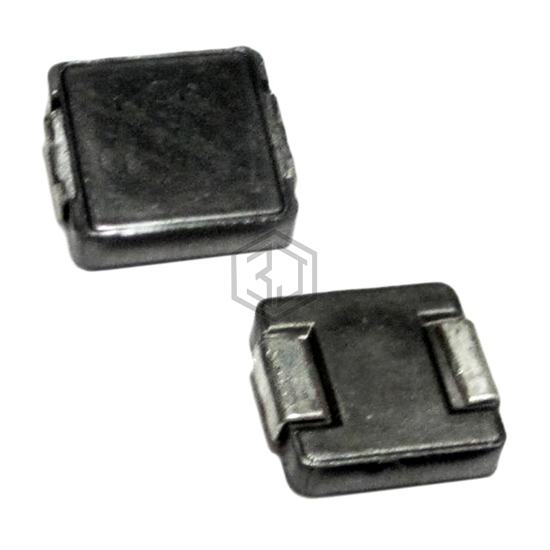

FIXED IND 2.2UH 8A 20 MOHM SMD
ASPI-7318-2R2M-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 2.2UH 8A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 8 A.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 200 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.268" W (7.30mm x 6.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for ASPI-7318-2R2M-T and get a quote within 24 hours.
