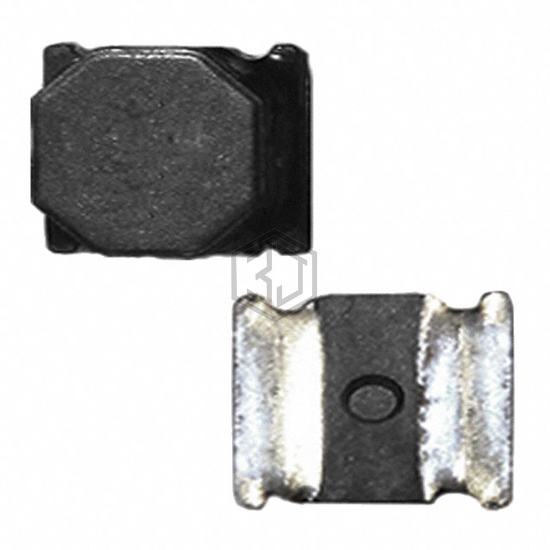

FIXED IND 3.3UH 1.3A 138MOHM SMD
ASPI-2515-3R3M-T2 is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 3.3UH 1.3A 138MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 120°C, package / case Nonstandard, current rating (amps) 1.3 A.
In Stock: 39,717
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 1.35A |
| Shielding | Shielded |
| DC Resistance (DCR) | 138mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for ASPI-2515-3R3M-T2 and get a quote within 24 hours.
