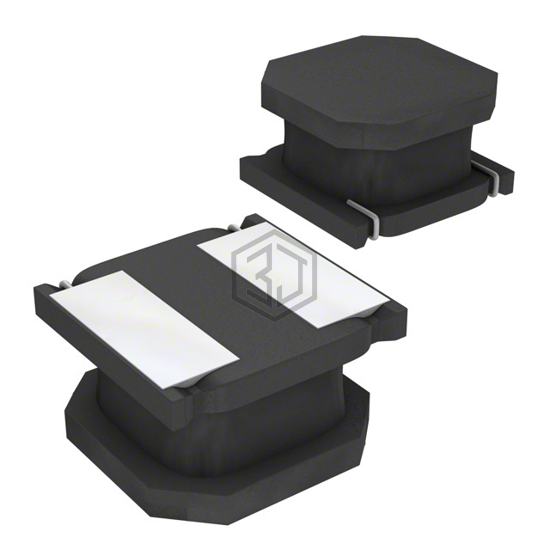

FIXED IND 6.8UH 640MA 479MOHM SM
ASPI-2012-6R8M-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 6.8UH 640MA 479MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 640 mA.
In Stock: 481
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 640 mA |
| Current - Saturation (Isat) | 820mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 479mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for ASPI-2012-6R8M-T and get a quote within 24 hours.
