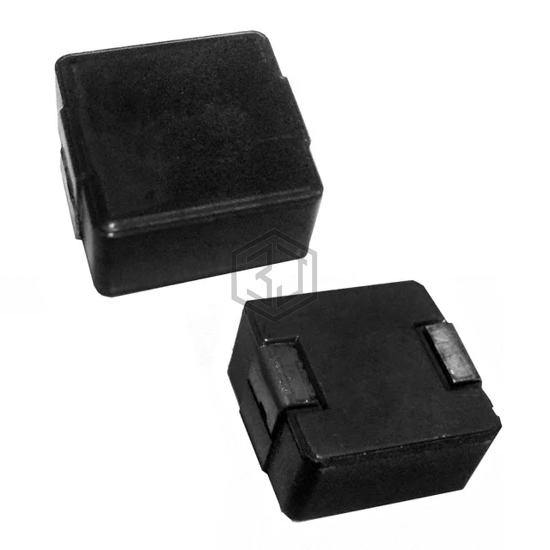

FIXED IND 2.2UH 20A 4.2 MOHM SMD
ASPI-1367-2R2M-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 2.2UH 20A 4.2 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 20 A.
In Stock: 470
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20 A |
| Current - Saturation (Isat) | 33A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 200 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.551" L x 0.508" W (14.00mm x 12.90mm) |
| Height - Seated (Max) | 0.264" (6.70mm) |
Submit your RFQ for ASPI-1367-2R2M-T and get a quote within 24 hours.
