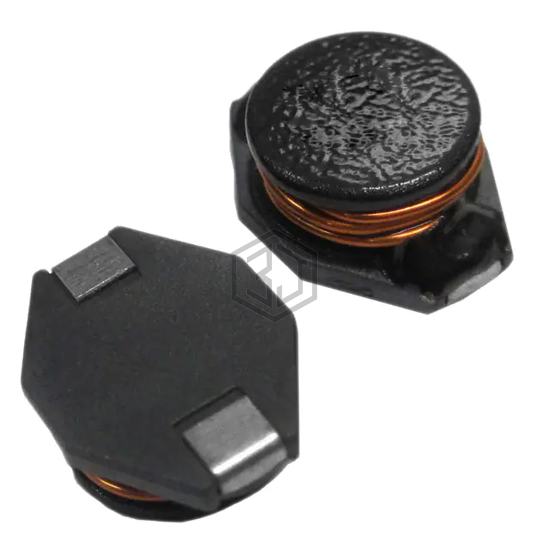

FIXED IND 100UH 1.8A 190MOHM SMD
ASPI-1306T-101M-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 100UH 1.8A 190MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 1.8 A.
In Stock: 2,100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 190mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Height - Seated (Max) | 0.280" (7.11mm) |
Submit your RFQ for ASPI-1306T-101M-T and get a quote within 24 hours.
