FIXED IND 1UH 18A 3.3 MOHM SMD

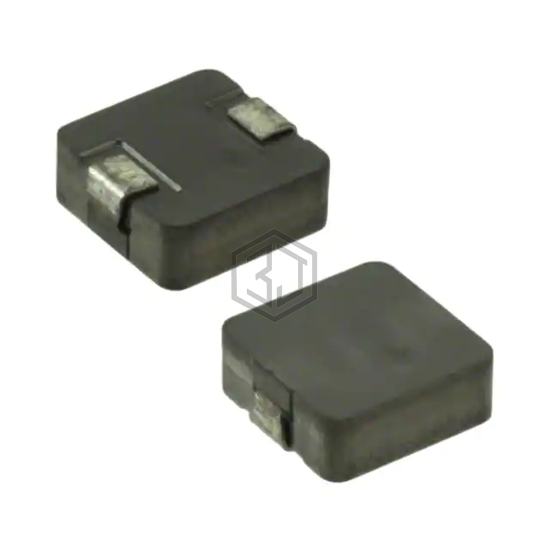

ASPI-1040HI-1R0M-T05 is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 1UH 18A 3.3 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 18 A.
In Stock: 904
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | 28A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.439" L x 0.394" W (11.15mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
