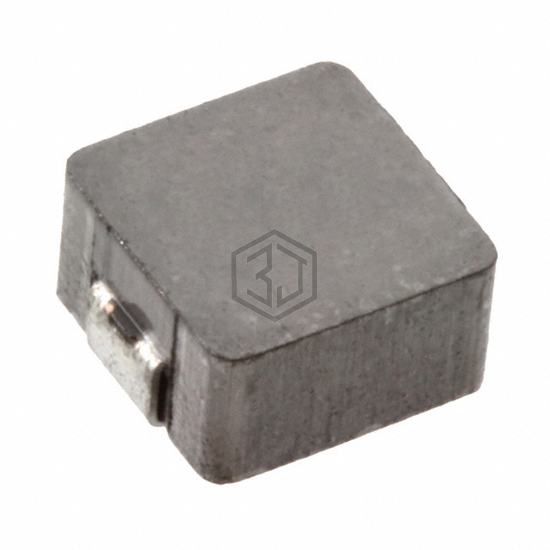

FIXED IND 1UH 7A 14 MOHM SMD
ASPI-0530HI-1R0M-T2 is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 1UH 7A 14 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 7 A.
In Stock: 14,690
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Carbonyl Powder |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.205" W (5.60mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for ASPI-0530HI-1R0M-T2 and get a quote within 24 hours.
