FIXED IND 1UH 7.5A 18.5 MOHM SMD

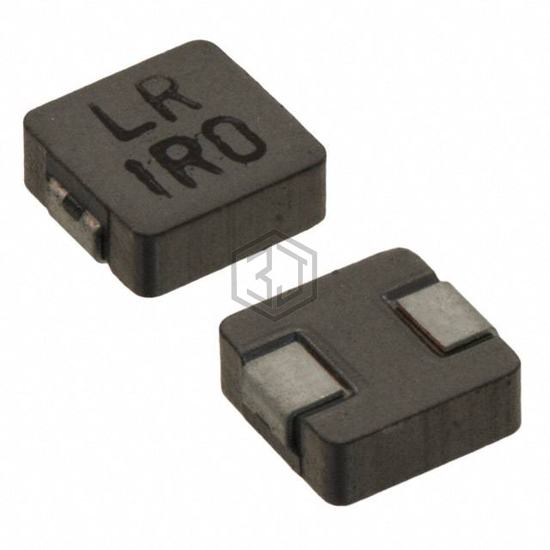

ASPI-0520LR-1R0M-T2 is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 1UH 7.5A 18.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.5 A.
In Stock: 360
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.5 A |
| Current - Saturation (Isat) | 8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 18.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.205" W (5.60mm x 5.20mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
