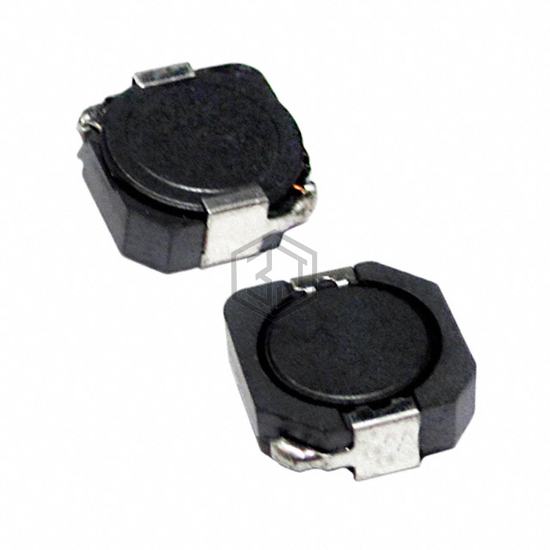

FIXED IND 4.7UH 900MA 105MOHM SM
ASPI-0315S-4R7M-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 4.7UH 900MA 105MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 900 mA.
In Stock: 724
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 105mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.146" L x 0.146" W (3.70mm x 3.70mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for ASPI-0315S-4R7M-T and get a quote within 24 hours.
