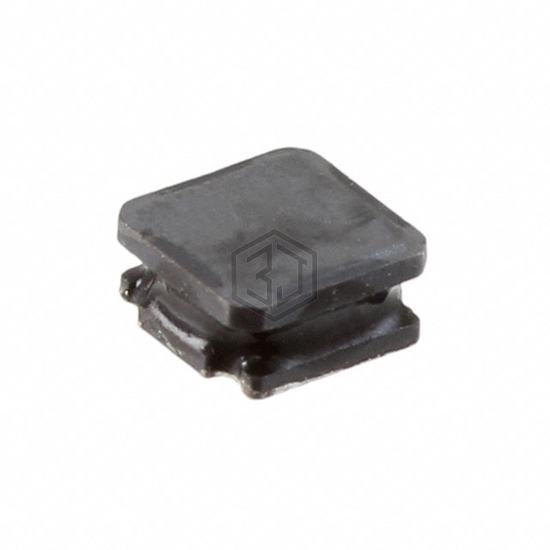

FIXED IND 39UH 500MA 850MOHM SMD
ASPI-0315FS-390M-T2 is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 39UH 500MA 850MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 120°C, package / case Nonstandard, current rating (amps) 390 mA.
In Stock: 8,068
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 39 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 390 mA |
| Current - Saturation (Isat) | 410mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.294Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 14MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for ASPI-0315FS-390M-T2 and get a quote within 24 hours.
