FIXED IND 3.3UH 1.2A 100MOHM SMD

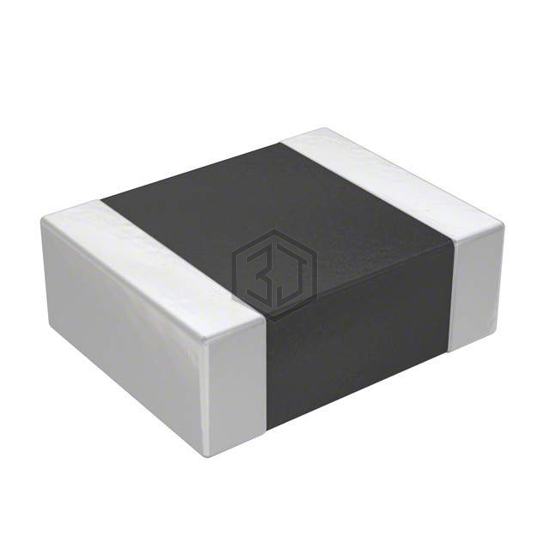

ASMPH-1008-3R3M-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 3.3UH 1.2A 100MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1008 (2520 Metric), current rating (amps) 1.2 A.
In Stock: 3,988
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | 450mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 100mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for ASMPH-1008-3R3M-T and get a quote within 24 hours.
