GNSS/GPS/GLONASS/BEIDOU PTCH ANT

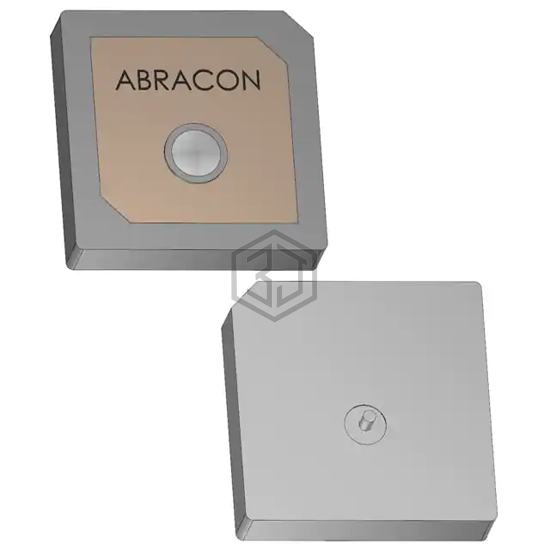

APARM1804-SG3 is a RF Antennas manufactured by Abracon LLC. GNSS/GPS/GLONASS/BEIDOU PTCH ANT. Key specifications: mounting type Surface Mount, termination Solder, frequency range 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.583GHz ~ 1.589GHz, 1.597GHz ~ 1.607GHz.
In Stock: 798
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.586GHz, 1.602GHz |
| Frequency Range | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.583GHz ~ 1.589GHz, 1.597GHz ~ 1.607GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 4 |
| VSWR | 1.8 |
| Return Loss | -10dB |
| Gain | 2dBi, 3dBi, 4dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.157" (4.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
Submit your RFQ for APARM1804-SG3 and get a quote within 24 hours.
