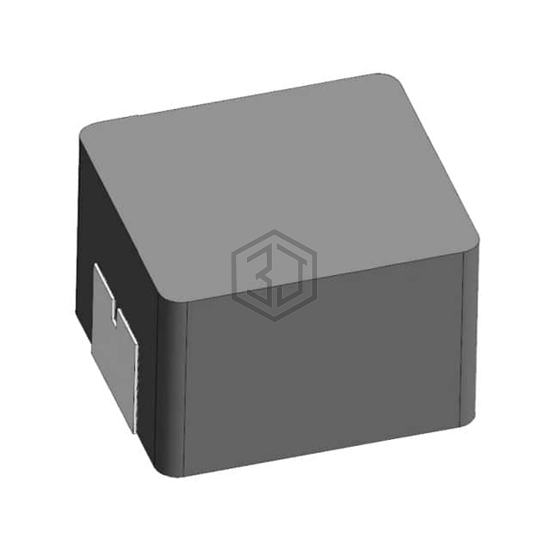

FIXED IND 10UH 4A 69 MOHM SMD
AMPLA7050S-100MT is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 10UH 4A 69 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 4 A.
In Stock: 679
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Carbonyl Powder |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4 A |
| Current - Saturation (Isat) | 7.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 69mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for AMPLA7050S-100MT and get a quote within 24 hours.
