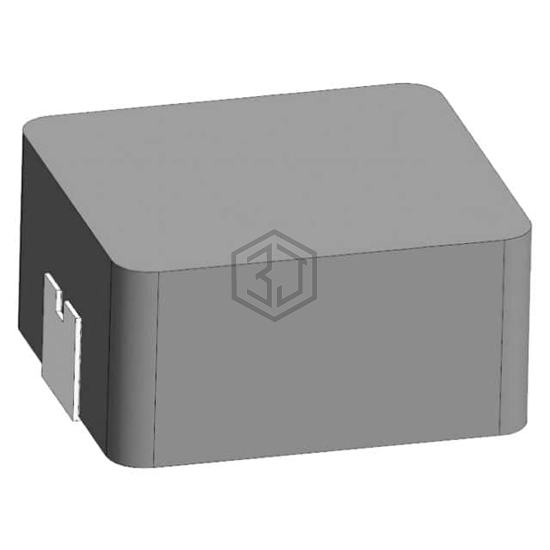

FIXED IND 1.5UH 6A 25 MOHM SMD
AMPLA5030S-1R5MT is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 1.5UH 6A 25 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 6 A.
In Stock: 5,844
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Carbonyl Powder |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6 A |
| Current - Saturation (Isat) | 10A |
| Shielding | Shielded |
| DC Resistance (DCR) | 25mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for AMPLA5030S-1R5MT and get a quote within 24 hours.
