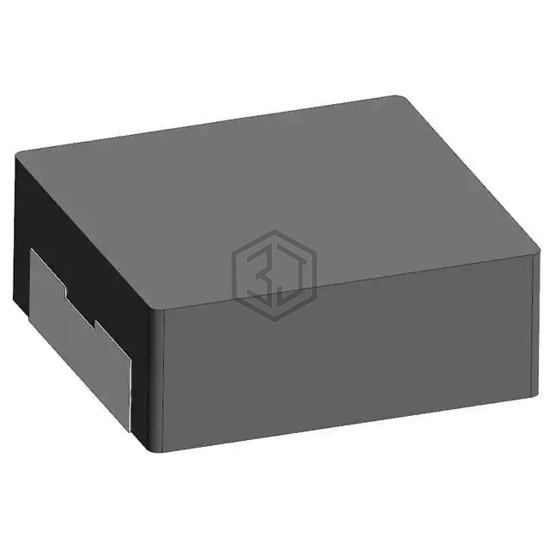

FIXED IND 470NH 60A 0.9MOHM SMD
AMDLA1707S-R47MT is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 470NH 60A 0.9MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 60 A.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 60 A |
| Current - Saturation (Isat) | 110A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.701" L x 0.665" W (17.80mm x 16.90mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for AMDLA1707S-R47MT and get a quote within 24 hours.
