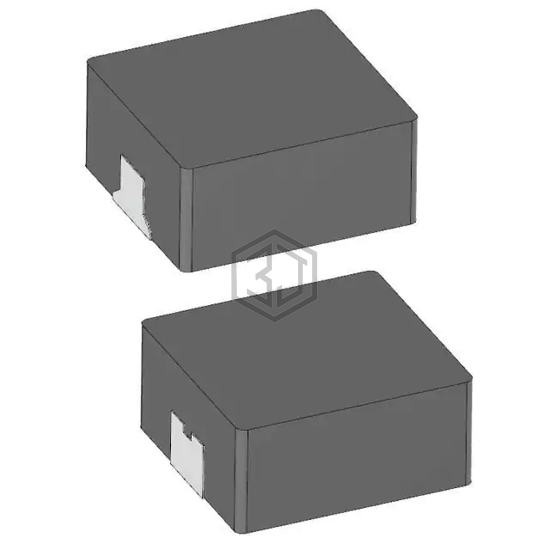

FIXED IND 47UH 5.7A 67 MOHM SMD
AMDLA1306S-470MT is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 47UH 5.7A 67 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 5.7 A.
In Stock: 426
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.7 A |
| Current - Saturation (Isat) | 6.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 67mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for AMDLA1306S-470MT and get a quote within 24 hours.
