FIXED IND 33MH 30MA 100 OHM TH

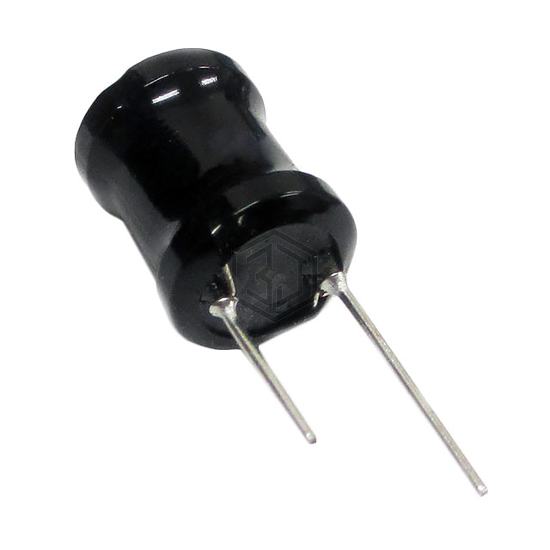

AIUR-16-333K is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 33MH 30MA 100 OHM TH. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case Radial, Vertical Cylinder, current rating (amps) 30 mA.
In Stock: 178
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 30 mA |
| Current - Saturation (Isat) | 29mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 100Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
Submit your RFQ for AIUR-16-333K and get a quote within 24 hours.
