FIXED IND 1.8MH 160MA 6.12OHM TH

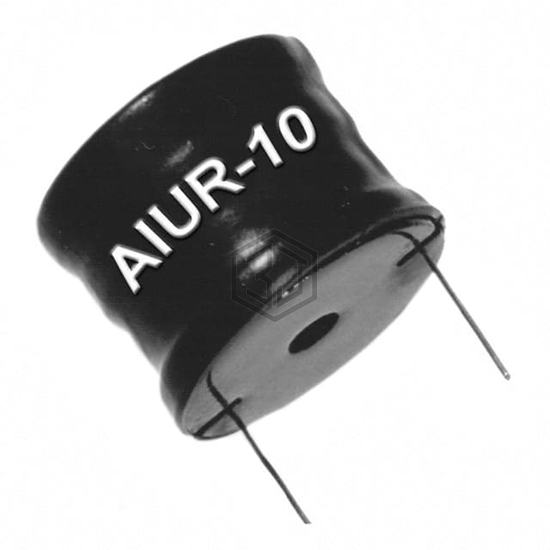

AIUR-10-182K is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 1.8MH 160MA 6.12OHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 160 mA.
In Stock: 3,615
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.8 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 160 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.12Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for AIUR-10-182K and get a quote within 24 hours.
