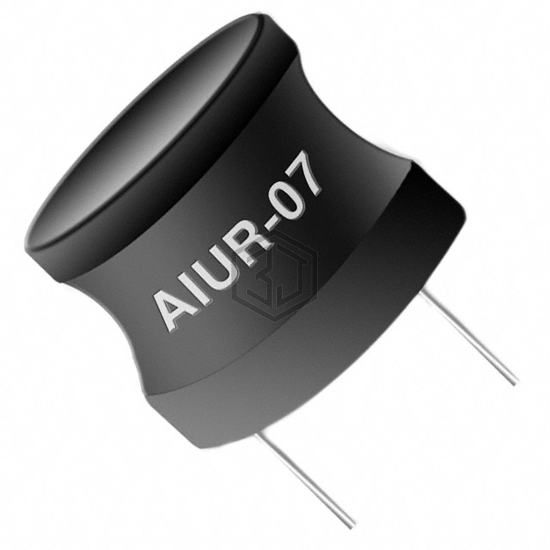

FIXED IND 820UH 130MA 5.3 OHM TH
AIUR-07-821K is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 820UH 130MA 5.3 OHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, package / case Radial, Vertical Cylinder, current rating (amps) 130 mA.
In Stock: 995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 820 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 130 mA |
| Current - Saturation (Isat) | 170mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.3Ohm Max |
| Q @ Freq | 57 @ 1kHz |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Height - Seated (Max) | 0.201" (5.10mm) |
Submit your RFQ for AIUR-07-821K and get a quote within 24 hours.
