FIXED IND 1.5MH 150MA 9 OHM TH

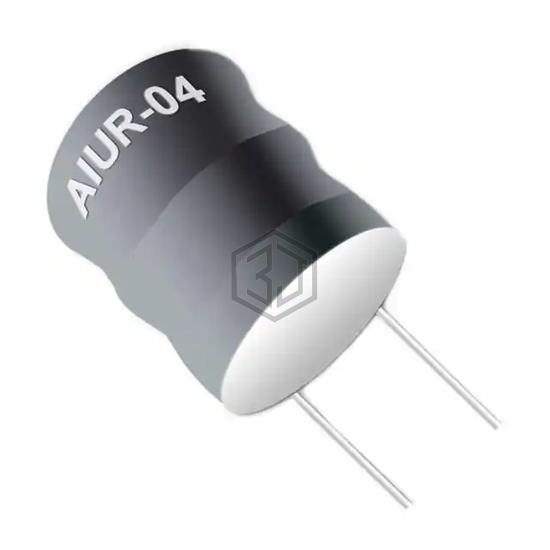

AIUR-04-152J is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 1.5MH 150MA 9 OHM TH. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case Radial, Vertical Cylinder, current rating (amps) 150 mA.
In Stock: 622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 150 mA |
| Current - Saturation (Isat) | 150mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9Ohm Max |
| Q @ Freq | 40 @ 252kHz |
| Frequency - Self Resonant | 1.1MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 252 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
