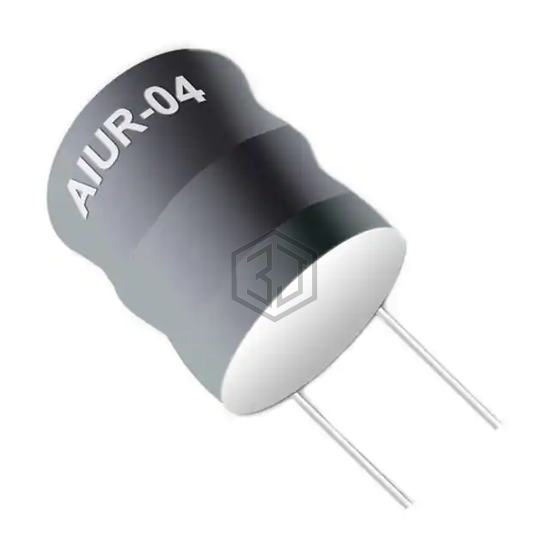

FIXED IND 12MH 40MA 40 OHM TH
AIUR-04-123J is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 12MH 40MA 40 OHM TH. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case Radial, Vertical Cylinder, current rating (amps) 40 mA.
In Stock: 2,088
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 12 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 40 mA |
| Current - Saturation (Isat) | 40mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40Ohm Max |
| Q @ Freq | 40 @ 79.6kHz |
| Frequency - Self Resonant | 400kHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 79.6 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
Submit your RFQ for AIUR-04-123J and get a quote within 24 hours.
