FIXED IND 56UH 900MA 180 MOHM TH

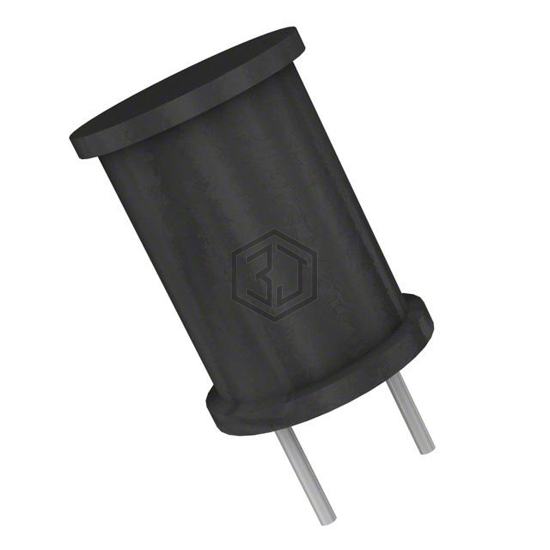

AIUR-03-560K is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 56UH 900MA 180 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case Radial, Vertical Cylinder, current rating (amps) 900 mA.
In Stock: 676
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 56 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency - Self Resonant | 5.4MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
