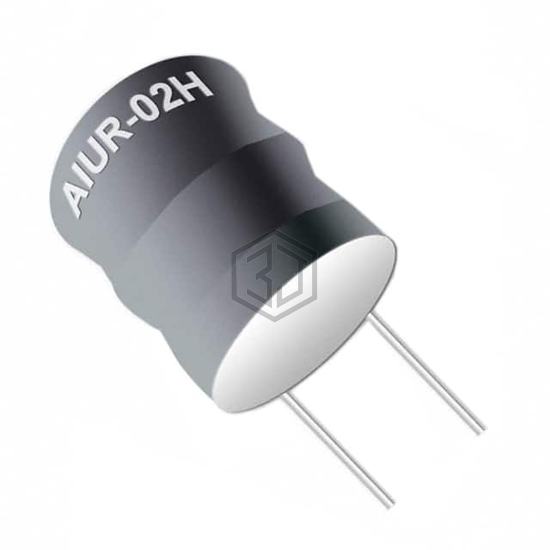

FIXED IND 150UH 610MA 270MOHM TH
AIUR-02H-151K is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 150UH 610MA 270MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 610 mA.
In Stock: 670
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 610 mA |
| Current - Saturation (Isat) | 1.15A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 270mOhm Max |
| Q @ Freq | 20 @ 790kHz |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
Submit your RFQ for AIUR-02H-151K and get a quote within 24 hours.
