FIXED IND 180UH 102MA 9.5OHM SMD

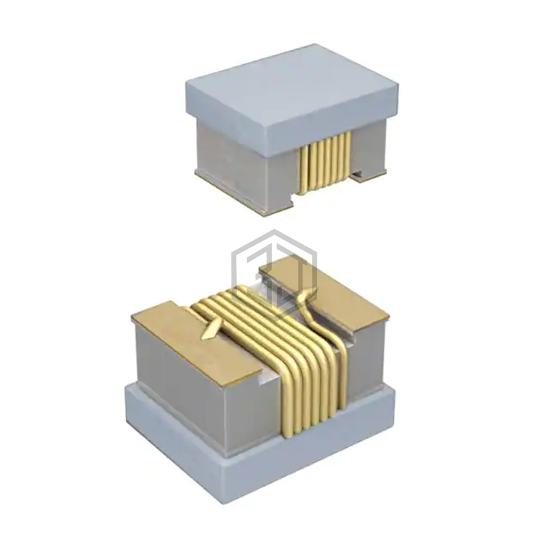

AISM-1812-181K-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 180UH 102MA 9.5OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1812 (4532 Metric), current rating (amps) 102 mA.
In Stock: 393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 180 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 102 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9.5Ohm Max |
| Q @ Freq | 40 @ 796kHz |
| Frequency - Self Resonant | 5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for AISM-1812-181K-T and get a quote within 24 hours.
