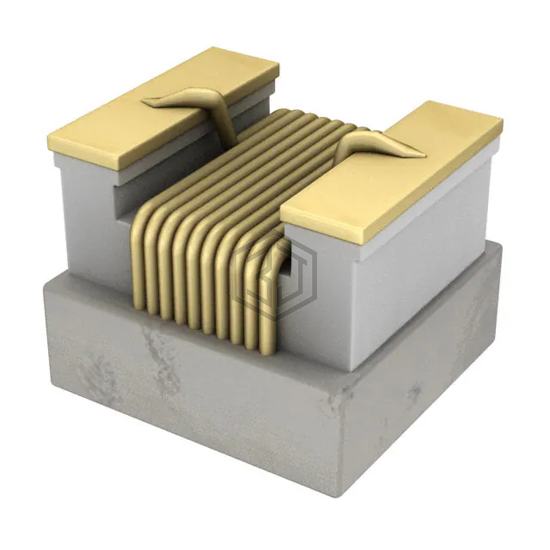

FIXED IND 1.8UH 600MA 840MOHM SM
AISC-1008F-1R8J-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 1.8UH 600MA 840MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1008 (2520 Metric), current rating (amps) 600 mA.
In Stock: 1,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.8 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 840mOhm Max |
| Q @ Freq | 33 @ 50MHz |
| Frequency - Self Resonant | 170MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.090" (2.29mm) |
Submit your RFQ for AISC-1008F-1R8J-T and get a quote within 24 hours.
