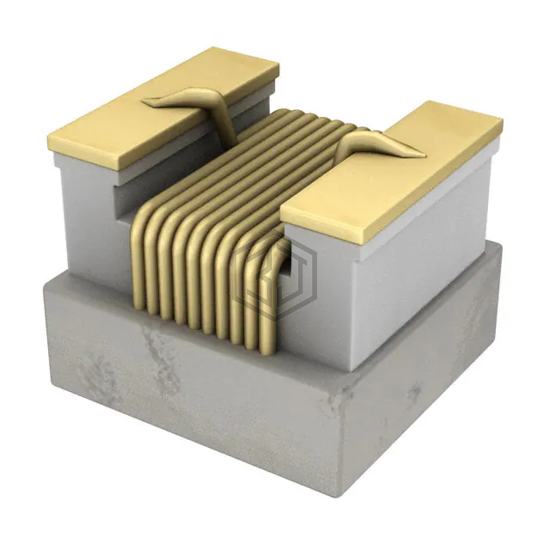

FIXED IND 330NH 450MA 1.05OHM SM
AISC-1008-R33J-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 330NH 450MA 1.05OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 450 mA.
In Stock: 2,364
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 330 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.05Ohm Max |
| Q @ Freq | 50 @ 100MHz |
| Frequency - Self Resonant | 530MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.090" (2.29mm) |
