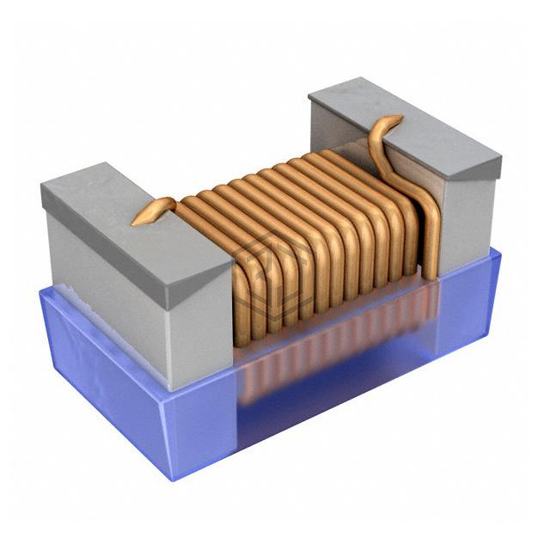

FIXED IND 96NH 730MA 160MOHM SMD
AISC-0402F-96NJ-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 96NH 730MA 160MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 730 mA.
In Stock: 8,694
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 96 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 730 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 160mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.1GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
Submit your RFQ for AISC-0402F-96NJ-T and get a quote within 24 hours.
