FIXED IND 2.2MH 800MA 1.54OHM TH

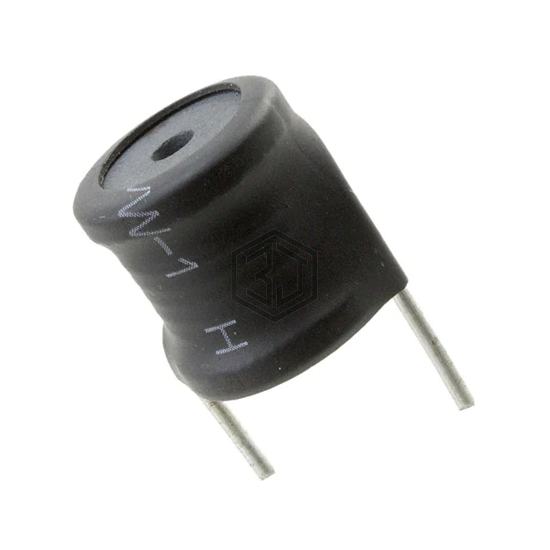

AIRD-02-222K is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 2.2MH 800MA 1.54OHM TH. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case Radial, Vertical Cylinder, current rating (amps) 800 mA.
In Stock: 769
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.54Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.827" Dia (21.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
Submit your RFQ for AIRD-02-222K and get a quote within 24 hours.
