FIXED IND 22UH 5MA 900 MOHM SMD

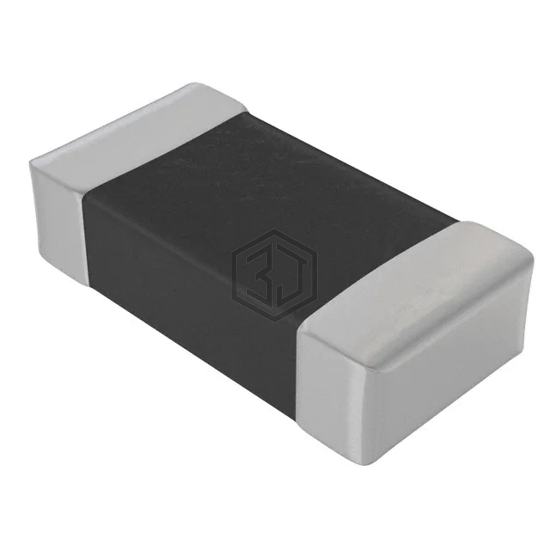

AIML-1206-220K-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 22UH 5MA 900 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1206 (3216 Metric), current rating (amps) 5 mA.
In Stock: 24,814
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 5 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 900mOhm Max |
| Q @ Freq | 40 @ 1MHz |
| Frequency - Self Resonant | 19MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
Submit your RFQ for AIML-1206-220K-T and get a quote within 24 hours.
