FIXED IND 1.5UH 15MA 1.2 OHM SMD

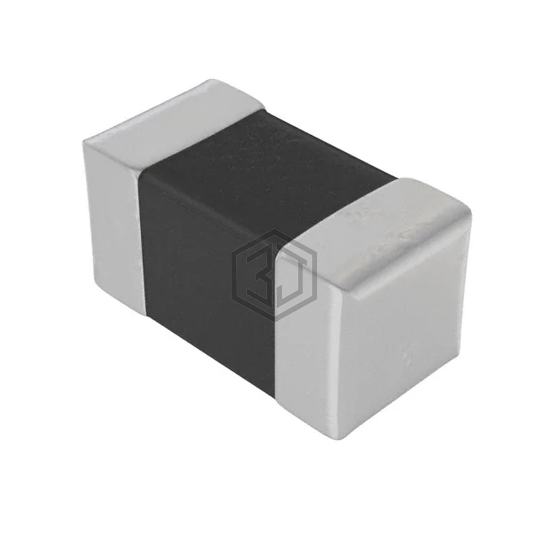

AIML-0402-1R5K-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 1.5UH 15MA 1.2 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 15 mA.
In Stock: 5,600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 15 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.2Ohm Max |
| Q @ Freq | 20 @ 10MHz |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
Submit your RFQ for AIML-0402-1R5K-T and get a quote within 24 hours.
