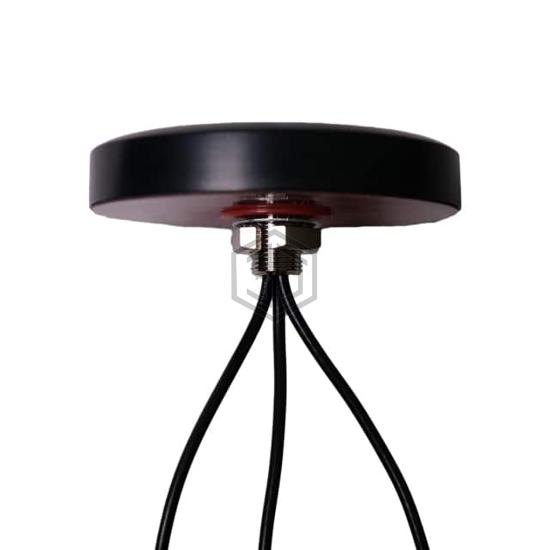

ANTENNA GNSS+LTE+WIFI
AECW0801C03S-3000S is a RF Antennas manufactured by Abracon LLC. ANTENNA GNSS+LTE+WIFI. Key specifications: mounting type Screw Mount, termination SMA Male (3), ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz.
In Stock: 97
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.5815GHz, 2.2GHz, 2.44GHz, 5.3625GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz |
| Antenna Type | Module |
| Number of Bands | 5 |
| VSWR | 2, 2.5, 3 |
| Return Loss | - |
| Gain | 2dBi, 2dBic, 2dBi, 2dBi, 2dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA |
| Termination | SMA Male (3) |
| Ingress Protection | IP67 |
| Mounting Type | Screw Mount |
| Height (Max) | 0.642" (16.30mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
Submit your RFQ for AECW0801C03S-3000S and get a quote within 24 hours.
