RF ANT 4IN1 LTE MIMO/GNSS/AMFM S

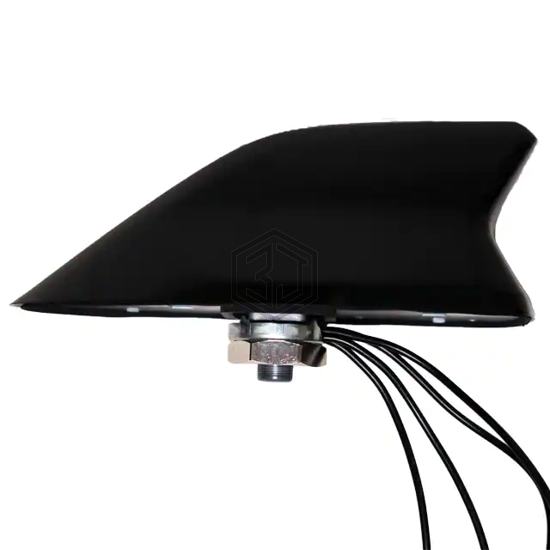

AECS1806D07ZS-3000S is a RF Antennas manufactured by Abracon LLC. RF ANT 4IN1 LTE MIMO/GNSS/AMFM S. Key specifications: mounting type Panel, termination FME Female (1), SMA Male (3), ingress protection IP67, frequency range 529kHz ~ 1.629MHz, 76MHz ~ 108MHz, 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz.
In Stock: 89
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.079MHz, 92MHz, 829MHz, 1.5815GHz, 2.2GHz |
| Frequency Range | 529kHz ~ 1.629MHz, 76MHz ~ 108MHz, 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz |
| Antenna Type | Module |
| Number of Bands | 5 |
| VSWR | 1.5, 2, 2.5, 3 |
| Return Loss | - |
| Gain | 19dB, 8dB, 3dBi, 3.5dBi, 2dBic |
| Power - Max | - |
| Features | Cable - 3m, LNA |
| Termination | FME Female (1), SMA Male (3) |
| Ingress Protection | IP67 |
| Mounting Type | Panel |
| Height (Max) | 2.713" (68.90mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, LTE |
Submit your RFQ for AECS1806D07ZS-3000S and get a quote within 24 hours.
