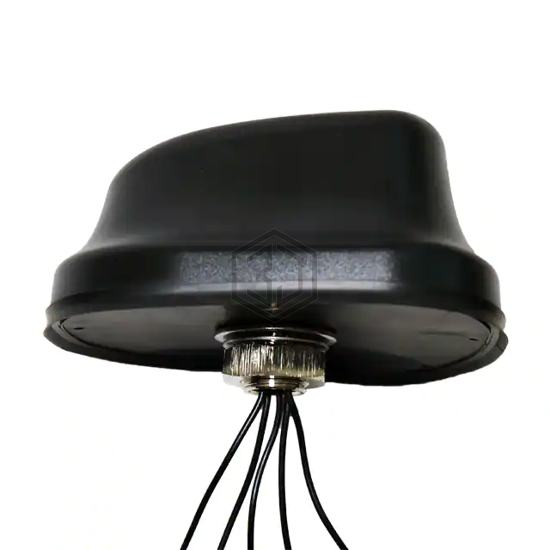

ANTENNA GNSS+5G MIMO+WIFI MIMO
AECR1808A12S-3000S is a RF Antennas manufactured by Abracon LLC. ANTENNA GNSS+5G MIMO+WIFI MIMO. Key specifications: mounting type Screw Mount, termination SMA Male (5), ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.561GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.9GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.5835GHz, 2.2GHz, 2.44GHz, 3.35GHz, 5.4125GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.561GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.9GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz |
| Antenna Type | Dome |
| Number of Bands | 6 |
| VSWR | 2, 2.5, 3 |
| Return Loss | - |
| Gain | 2dBi, 5dBi, 2dBi, 2dBi, 2dBi, 2dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA |
| Termination | SMA Male (5) |
| Ingress Protection | IP67 |
| Mounting Type | Screw Mount |
| Height (Max) | 3.346" (85.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
Submit your RFQ for AECR1808A12S-3000S and get a quote within 24 hours.
