AM/FM/GPS/WIFI/LTE MIMO COMB ANT

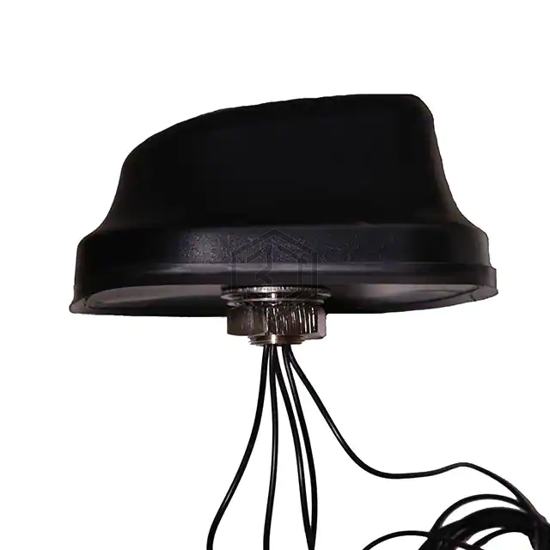

AEACBK189085-MLWFGL5 is a RF Antennas manufactured by Abracon LLC. AM/FM/GPS/WIFI/LTE MIMO COMB ANT. Key specifications: mounting type Panel Mount, termination SMA, Mini-DIN Female, ingress protection IP67, frequency range 520kHz ~ 1.629MHz, 76MHz ~ 108MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.9GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.0745MHz, 92MHz, 829MHz, 1.176GHz, 1.575GHz, 2.2GHz, 2.4417GHz, 3.35GHz, 5.4GHz |
| Frequency Range | 520kHz ~ 1.629MHz, 76MHz ~ 108MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.9GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz |
| Antenna Type | Module |
| Number of Bands | 9 |
| VSWR | 2, 3 |
| Return Loss | - |
| Gain | 1dBi, 8dBi, 4dBi, 4dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA |
| Termination | SMA, Mini-DIN Female |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 3.346" (85.00mm) |
| Applications | GNSS, GPS, LTE, Wi-Fi |
Submit your RFQ for AEACBK189085-MLWFGL5 and get a quote within 24 hours.
