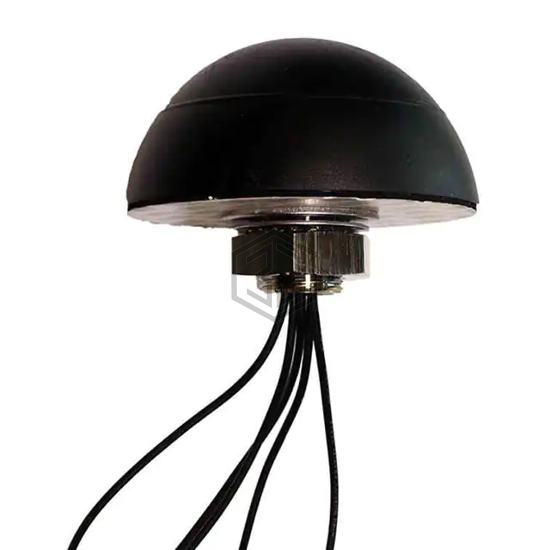

GPS/GLON/LTE/WIFI MIMO COMB ANT
AEACBK110053-MLWG is a RF Antennas manufactured by Abracon LLC. GPS/GLON/LTE/WIFI MIMO COMB ANT. Key specifications: mounting type Screw Mount, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.484GHz, 4.9GHz ~ 5.825GHz.
In Stock: 280
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.5925GHz, 2.2GHz, 2.442GHz, 5.3625GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.484GHz, 4.9GHz ~ 5.825GHz |
| Antenna Type | Dome |
| Number of Bands | 5 |
| VSWR | 2, 2.5, 3 |
| Return Loss | - |
| Gain | 2dBi, 3dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Screw Mount |
| Height (Max) | 2.087" (53.00mm) |
| Applications | 2G, 3G, 4G, GLONASS, GSM, GPS, GNSS, LTE, Wi-Fi |
Submit your RFQ for AEACBK110053-MLWG and get a quote within 24 hours.
