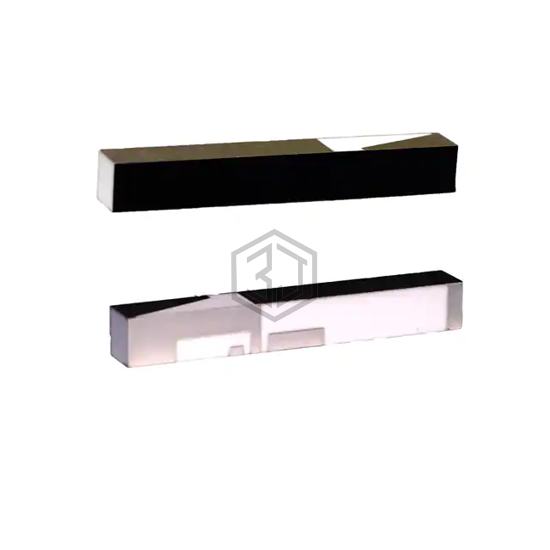

RF ANT 4G/LTE CERAMIC CHIP
ACR3705LZ is a RF Antennas manufactured by Abracon LLC. RF ANT 4G/LTE CERAMIC CHIP. Key specifications: mounting type Surface Mount, termination Solder, frequency range 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz.
In Stock: 892
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 830MHz, 1.94GHz, 2.6GHz |
| Frequency Range | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz |
| Antenna Type | Chip |
| Number of Bands | 3 |
| VSWR | 4.5 |
| Return Loss | - |
| Gain | -2.47dBi, -2.49dBi, -3.46dBi, -2.42dBi, -1.67dBi, -1.13dBi, -2.46dBi, -3.77dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.197" (5.00mm) |
| Applications | 2G, 3G, 4G, GSM, LTE |
Submit your RFQ for ACR3705LZ and get a quote within 24 hours.
