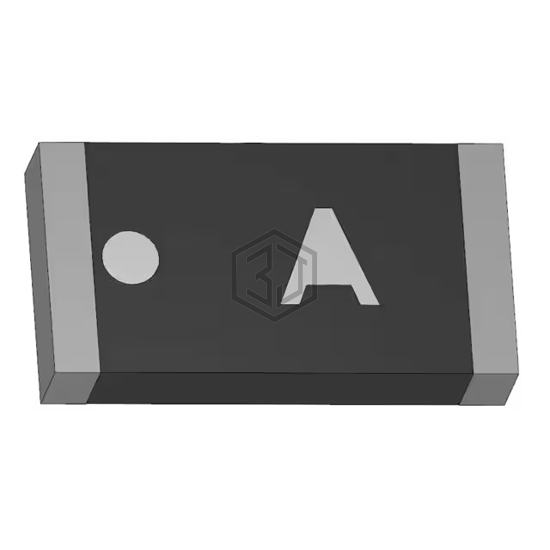

LOW PROF DUAL BAND WIFI CHIP ANT
ACAR0301-SW2 is a RF Antennas manufactured by Abracon LLC. LOW PROF DUAL BAND WIFI CHIP ANT. Key specifications: mounting type Surface Mount, termination Solder, frequency range 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth, General ISM, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.4875GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz |
| Antenna Type | Chip |
| Number of Bands | 2 |
| VSWR | 2 |
| Return Loss | -10.04dB, -10.18dB, -10.19dB, -13.79dB, -15.71dB, -18.27dB |
| Gain | 1dBi, 2.5dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.022" (0.55mm) |
| Applications | Bluetooth, ISM, Wi-Fi |
Submit your RFQ for ACAR0301-SW2 and get a quote within 24 hours.
