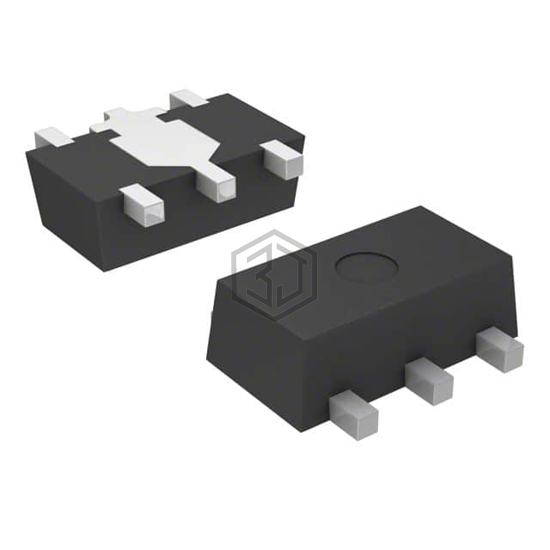

IC REG LINEAR 5.6V 180MA SOT89-5
S-814A56AUC-BDUT2G is a PMIC - Voltage Regulators - Linear manufactured by ABLIC Inc.. IC REG LINEAR 5.6V 180MA SOT89-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-89-5/6, current - supply (max) 40 µA.
In Stock: 2,912
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 5.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 60mA |
| Current - Output | 180mA |
| Current - Quiescent (Iq) | 500 nA |
| Current - Supply (Max) | 40 µA |
| PSRR | 45dB (100Hz) |
| Control Features | Enable |
| Protection Features | Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
S-814A56AUC-BDUT2G is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| S-814A54AMC-BDST2G | ABLIC Inc. | IC REG LINEAR 5.4V 180MA SOT23-5 | 99% | View |
| S-818A60AMC-BHOT2G | ABLIC Inc. | IC REG LINEAR 6V 300MA SOT23-5 | 91% | View |
| S-818A34AUC-BGOT2G | ABLIC Inc. | IC REG LINEAR 3.4V 200MA SOT89-5 | 79% | View |
| S-1132B53-I6T2U | ABLIC Inc. | IC REG LINEAR 5.3V 300MA SNT6A | 73% | View |
| S-1132B34-I6T2U | ABLIC Inc. | IC REG LINEAR 3.4V 300MA SNT6A | 60% | View |
| ADP121-AUJZ33R7 | Analog Devices Inc. | IC REG LINEAR 3.3V 150MA TSOT5 | 53% | View |
Submit your RFQ for S-814A56AUC-BDUT2G and get a quote within 24 hours.
