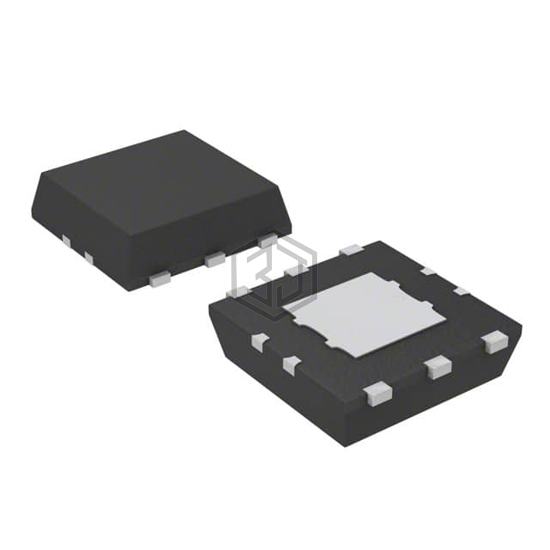

IC REG LINEAR 2.2V 800MA 6HSON
S-1170B22PD-OTHTFG is a PMIC - Voltage Regulators - Linear manufactured by ABLIC Inc.. IC REG LINEAR 2.2V 800MA 6HSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-SMD, Flat Lead Exposed Pad, current - supply (max) 160 µA.
In Stock: 6,101
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.22V @ 300mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 1 µA |
| Current - Supply (Max) | 160 µA |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Thermal Shutdown |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Lead Exposed Pad |
| Supplier Device Package | 6-HSON (A) (2.9x2.8) |
S-1170B22PD-OTHTFG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| S-1170B23UC-OTITFG | ABLIC Inc. | IC REG LINEAR 2.3V 800MA SOT89-5 | 99% | View |
| S-1170B18UC-OTDTFG | ABLIC Inc. | IC REG LINEAR 1.8V 800MA SOT89-5 | 93% | View |
| S-1170B28UC-OTNTFU | ABLIC Inc. | IC REG LINEAR 2.8V 800MA SOT89-5 | 93% | View |
| S-1170B40UC-OTZTFU | ABLIC Inc. | IC REG LINEAR 4V 800MA SOT89-5 | 82% | View |
| S-1170B53UC-OUMTFU | ABLIC Inc. | IC REG LINEAR 5.3V 800MA SOT89-5 | 79% | View |
| S-1170B44UC-OUDTFU | ABLIC Inc. | IC REG LINEAR 4.4V 800MA SOT89-5 | 79% | View |
