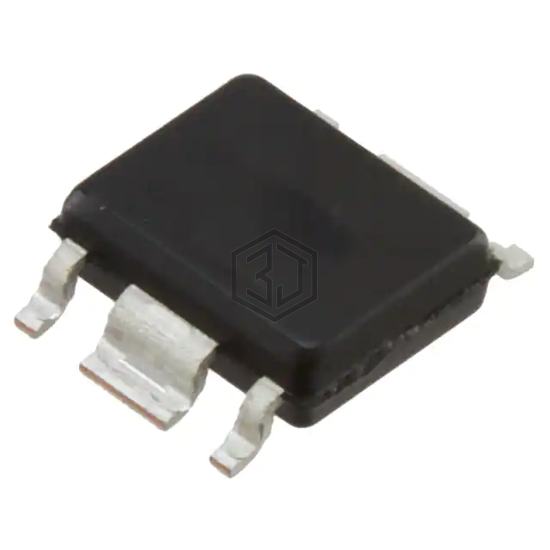

IC REG LINEAR 8.6V 200MA 6HSOP
S-1142D86H-E6T2H is a PMIC - Voltage Regulators - Linear manufactured by ABLIC Inc.. IC REG LINEAR 8.6V 200MA 6HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), package / case 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins, current - supply (max) 9 µA.
In Stock: 2,954
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 50V |
| Voltage - Output (Min/Fixed) | 8.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 2.5 µA |
| Current - Supply (Max) | 9 µA |
| PSRR | 35dB (100Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Thermal Shutdown |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins |
| Supplier Device Package | 6-HSOP |
S-1142D86H-E6T2H is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| S-1142D80H-E6T2U | ABLIC Inc. | IC REG LINEAR 8V 200MA 6HSOP | 98% | View |
| S-1142B98H-E6T2U | ABLIC Inc. | IC REG LINEAR 9.8V 200MA 6HSOP | 96% | View |
| S-1142DA0H-E6T2U | ABLIC Inc. | IC REG LINEAR 10V 200MA 6HSOP | 95% | View |
| S-1142AC5H-E6T2U | ABLIC Inc. | IC REG LINEAR 12.5V 200MA 6HSOP | 88% | View |
| S-1142A50H-E6T2U | ABLIC Inc. | IC REG LINEAR 5V 200MA 6HSOP | 84% | View |
| S-1142C40H-E6T2U | ABLIC Inc. | IC REG LINEAR 4V 200MA 6HSOP | 79% | View |
Submit your RFQ for S-1142D86H-E6T2H and get a quote within 24 hours.
