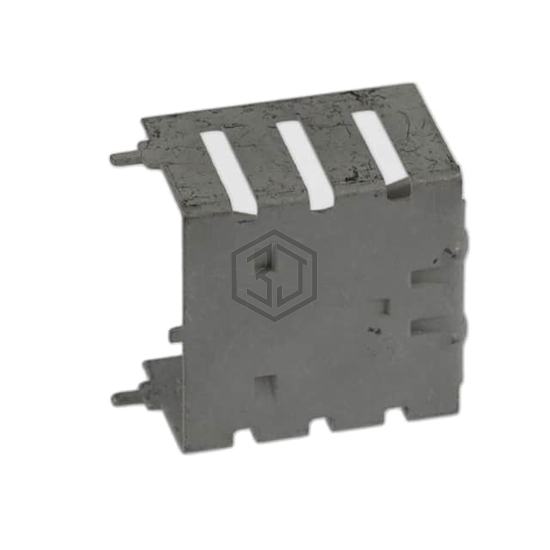

7138DG
Aavid, Thermal Division of Boyd Corporation
BOARD LEVEL HEAT SINK
7138DG is a Thermal - Heat Sinks manufactured by Aavid, Thermal Division of Boyd Corporation. BOARD LEVEL HEAT SINK. Key specifications: material Copper.
In Stock: 747
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Board Level, Vertical |
| Package Cooled | TO-220 |
| Attachment Method | Clip and PC Pin |
| Shape | Rectangular, Fins |
| Length | 1.025" (26.04mm) |
| Width | 1.005" (25.53mm) |
| Diameter | - |
| Fin Height | 0.610" (15.49mm) |
| Power Dissipation @ Temperature Rise | 1.5W @ 40°C |
| Thermal Resistance @ Forced Air Flow | 5.00°C/W @ 500 LFM |
| Thermal Resistance @ Natural | 20.00°C/W |
| Material | Copper |
| Material Finish | Tin |
Frequently Asked Questions
7138DG is a Thermal - Heat Sinks manufactured by Aavid, Thermal Division of Boyd Corporation. BOARD LEVEL HEAT SINK
The material of 7138DG is Copper.
