Aavid, Thermal Division of Boyd Corporation
BOARD LEVEL HEATSINK .515"TO-220

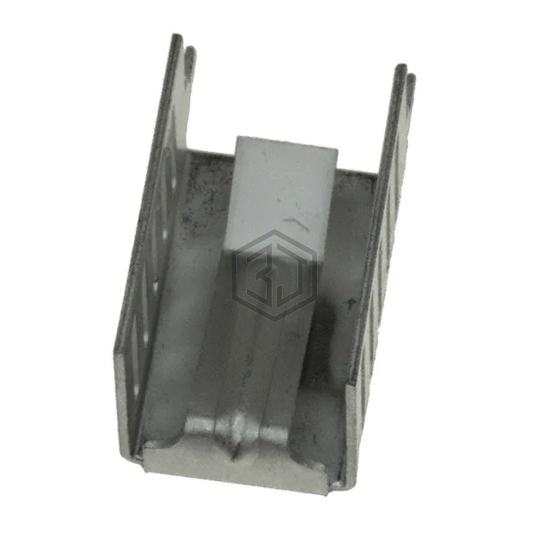

7136DG is a Thermal - Heat Sinks manufactured by Aavid, Thermal Division of Boyd Corporation. BOARD LEVEL HEATSINK .515"TO-220. Key specifications: material Copper.
In Stock: 2,830
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Board Level, Vertical |
| Package Cooled | TO-220 |
| Attachment Method | Clip and PC Pin |
| Shape | Rectangular, Fins |
| Length | 0.848" (21.55mm) |
| Width | 0.520" (13.21mm) |
| Diameter | - |
| Fin Height | 0.515" (13.08mm) |
| Power Dissipation @ Temperature Rise | 1.0W @ 30°C |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 500 LFM |
| Thermal Resistance @ Natural | 19.70°C/W |
| Material | Copper |
| Material Finish | Tin |
Submit your RFQ for 7136DG and get a quote within 24 hours.
