Aavid, Thermal Division of Boyd Corporation

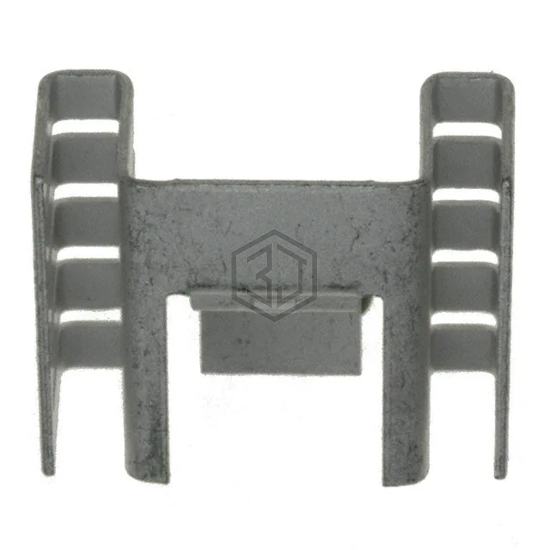

TOP MOUNT HEATSINK .45" D2PAK
7109DG is a Thermal - Heat Sinks manufactured by Aavid, Thermal Division of Boyd Corporation. TOP MOUNT HEATSINK .45" D2PAK. Key specifications: material Copper.
In Stock: 13,310
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Top Mount |
| Package Cooled | TO-263 (D²Pak) |
| Attachment Method | SMD Pad |
| Shape | Rectangular, Fins |
| Length | 0.763" (19.38mm) |
| Width | 1.000" (25.40mm) |
| Diameter | - |
| Fin Height | 0.450" (11.43mm) |
| Power Dissipation @ Temperature Rise | 2.0W @ 30°C |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 300 LFM |
| Thermal Resistance @ Natural | 11.00°C/W |
| Material | Copper |
| Material Finish | Tin |
Submit your RFQ for 7109DG and get a quote within 24 hours.
