CONN HEADER VERT 50POS 1.27MM

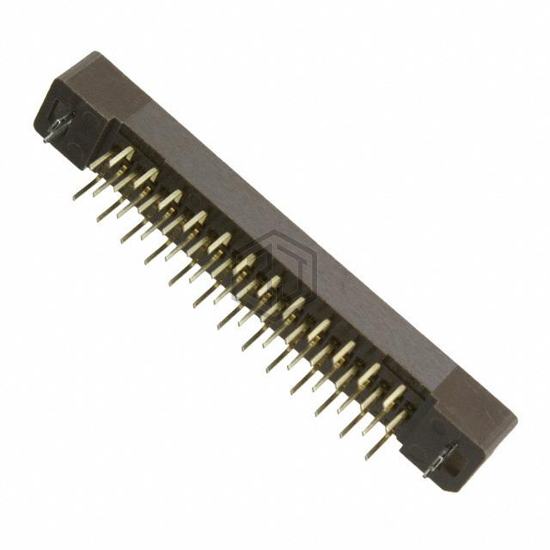

P50LE-050P1-R1-DA is a Rectangular Connectors - Headers, Male Pins manufactured by 3M. CONN HEADER VERT 50POS 1.27MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, contact material Phosphor Bronze, current rating (amps) 0.5A.
In Stock: 114
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Contact Type | Center Strip Contact |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.197" (5.00mm) |
| Contact Shape | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Board Lock |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Brown |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | - |
Submit your RFQ for P50LE-050P1-R1-DA and get a quote within 24 hours.
