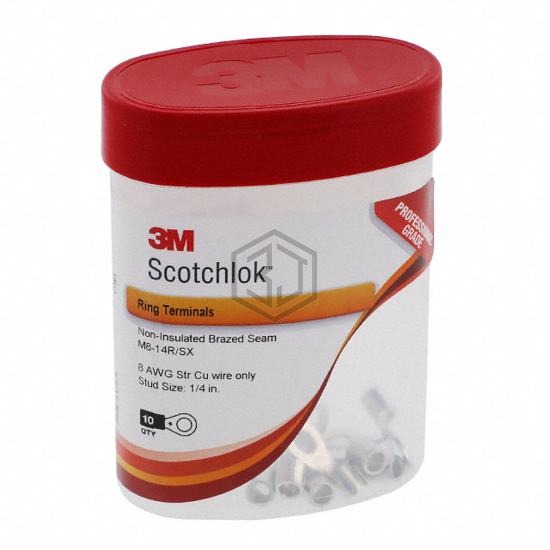

M8-14R/SX
CONN RING CIRC 8AWG #1/4 CRIMP
M8-14R/SX is a Terminals - Ring Connectors manufactured by 3M. CONN RING CIRC 8AWG #1/4 CRIMP. Key specifications: mounting type Free Hanging (In-Line), termination Crimp, wire gauge 8 AWG.
In Stock: 68
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud |
| Thickness | 0.050" (1.27mm) |
| Width - Outer Edges | 0.470" (11.94mm) |
| Length - Overall | 0.950" (24.13mm) |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Crimp |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Features | Brazed Seam |
| Color | - |
| Contact Material | - |
| Contact Finish | - |
Frequently Asked Questions
M8-14R/SX is a Terminals - Ring Connectors manufactured by 3M. CONN RING CIRC 8AWG #1/4 CRIMP
The mounting type of M8-14R/SX is Free Hanging (In-Line).
The termination type of M8-14R/SX is Crimp.
The wire or cable specification of M8-14R/SX is 8 AWG.
