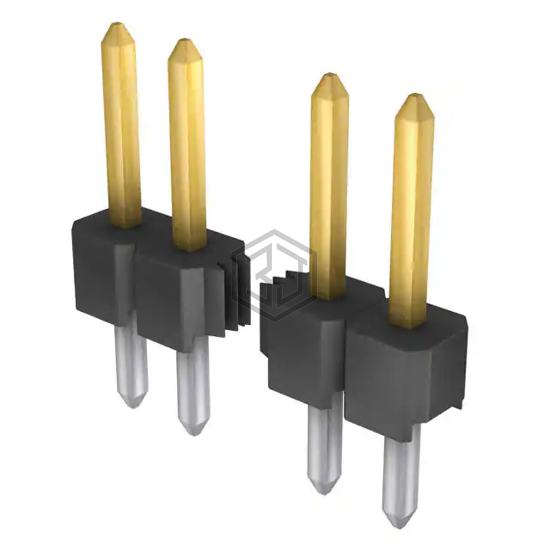

CONN HEADER VERT 36POS 2.54MM
961136-6804-AR is a Rectangular Connectors - Headers, Male Pins manufactured by 3M. CONN HEADER VERT 36POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, contact material Copper Alloy, current rating (amps) 2A.
In Stock: 14,680
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 36 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.268" (6.80mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | 0.496" (12.60mm) |
| Insulation Height | 0.098" (2.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -25°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
Submit your RFQ for 961136-6804-AR and get a quote within 24 hours.
